How I Mastered Precision Milling: My Expert Experience Using a Dividing Head for Milling Machines

When I first encountered the challenge of precision machining, I quickly realized that accuracy and repeatability were key to producing quality parts. That’s when I discovered the true value of a dividing head for a milling machine. This ingenious tool transforms the way you approach complex cuts and intricate patterns, unlocking a level of control that can elevate any milling project. Whether you’re a seasoned machinist or just starting out, understanding how a dividing head works can open up a whole new world of possibilities in your workshop.

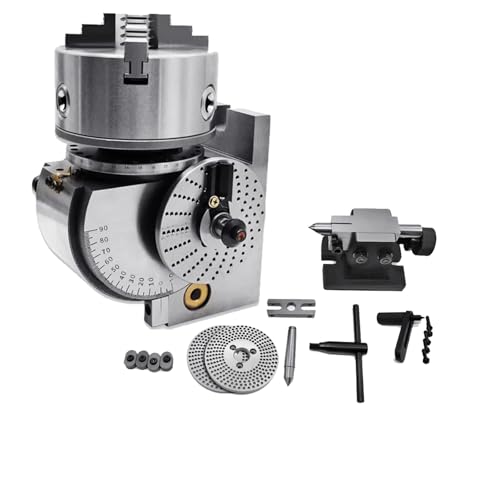

1. Mophorn Dividing Head BS-0 5Inch 3 Jaw Chuck Dividing Head Set Precision Semi Universal Dividing Head for Milling Machine Rotary Table Tailstock Milling Set (5 Inch Chuck)

When I first came across the Mophorn Dividing Head BS-0 5 Inch 3 Jaw Chuck Dividing Head Set, I immediately recognized it as a versatile and precision-driven tool designed for serious milling machine users. The construction quality alone speaks volumes. With a 5.5-inch (140 mm) swing and a rigid mirror finish, this dividing head is built to last and withstand the rigors of long-term use. The wear-resistant surface means I don’t have to worry about it deteriorating quickly, which is a huge plus when investing in machine tools. It’s clear that Mophorn has focused on durability and precision, making this a smart choice for both hobbyists and professionals.

One of the features that really stands out to me is the ease of adjustment. The headstock’s ability to tilt from 10° below horizontal up to 90° vertical offers incredible flexibility. This means I can work with materials of different sizes and shapes without needing to constantly switch out tools or setups. This adaptability is crucial when handling complex projects that require varying angles and precision cuts. It makes the milling process much smoother and less time-consuming, which is something I always appreciate.

Precision is the heart of any dividing head, and this product truly excels in that area. The inclusion of a direct indexing plate along with an interchangeable one attached to the head, plus two additional interchangeable plates with different hole counts, means I have multiple options for achieving exact divisions. This mathematical precision ensures that every cut or division I make is accurate, which is essential for creating high-quality parts or intricate designs. It gives me confidence that my work will meet the demanding standards of precision machining.

Another aspect that I find particularly valuable is the strong workpiece support provided by the included tailstock. When working with long metal rods or shafts, stability is paramount to avoid vibrations or misalignments. The tailstock offers that extra support I need to keep my workpiece steady, which translates directly into cleaner cuts and better finishes. It’s clear that this set was designed with the user’s workflow in mind, ensuring that every part of the process is as reliable as possible.

The versatility of this dividing head extends beyond just milling machines. Its compatibility with other machine tools such as drill presses, grinders, and boring machines makes it a multi-purpose addition to my workshop. Whether I’m indexing, grinding, or boring, having a single tool that can adapt to different machines saves both space and money. This wide application range means it’s a practical investment that will serve well across a variety of machining tasks.

Feature	Benefit
5.5″ Swing with Mirror Finish	Durable, wear-resistant construction for long-term use
Adjustable Headstock (10° Below Horizontal to 90° Vertical)	Flexible positioning for handling various workpiece sizes and angles
Direct and Interchangeable Indexing Plates	High precision in dividing and cutting operations
Included Tailstock	Provides strong support for long workpieces ensuring stability
Wide Application Range	Compatible with milling machines, drill presses, grinders, and boring machines

Overall, I see the Mophorn Dividing Head as a highly capable and reliable tool that can significantly enhance the precision and efficiency of my machining projects. While it carries features that appeal to both seasoned machinists and serious hobbyists, the robust build and thoughtful design make it worth considering for anyone looking to upgrade their milling setup. If you need a semi-universal dividing head that offers flexibility, accuracy, and solid support, this set could be exactly what you need. It’s an investment that pays off in improved workflow and quality results, making it a compelling choice when you’re ready to take your machining to the next level.

Get It From Amazon Now: Check Price on Amazon & FREE Returns

2. KAKA INDUSTRIAL BS-0 Semi-Universal Dividing Head Set 5 in, with 5-Inch Chuck, Tailstock, Dividing Plates, 3-Jaw Chuck Milling Set

When I first came across the KAKA INDUSTRIAL BS-0 Semi-Universal Dividing Head Set, I was immediately drawn to its comprehensive design and practical features. This 5-inch set, complete with a 5-inch chuck, tailstock, dividing plates, and a 3-jaw chuck milling set, offers an all-in-one solution that caters perfectly to both hobbyists and professional machinists. What excites me most is how this product simplifies complex dividing tasks without compromising on precision or versatility.

The core component, the Semi-Universal Dividing Head, stands out for its ability to handle both direct and indirect dividing efficiently. I appreciate that it’s designed as a simple Index Center but maintains the robust construction typical of universal types. This means I can confidently use it for gear cutting, face milling, and flute processing without needing extra accessories, which saves me time and reduces setup complexity. The quick-indexing feature with 24 holes is particularly useful, allowing me to directly index common divisions like 2, 3, 4, 6, 8, 12, and 24. This quick access to standard divisions makes repetitive tasks much smoother.

What truly impressed me is the inclusion of three index plates for indirect indexing, covering a wide range from 2-50 and 51-380, except for prime numbers and a few exceptions. This level of flexibility means I can tackle a vast array of projects without worrying about the limitations of the dividing head. The adjustable headstock, which tilts from 10° below horizontal up to 90° vertical, provides even more versatility. It allows me to machine workpieces at various angles, expanding the range of operations I can perform on a single setup.

The addition of a tailstock in the set is a thoughtful touch. Long metal bars often pose challenges due to vibration and instability, but with the tailstock offering strong support, I’ve noticed a significant improvement in the steadiness of my workpieces during milling. This stability not only improves the quality of my cuts but also enhances safety during operation.

Overall, the KAKA INDUSTRIAL BS-0 Semi-Universal Dividing Head Set has proven to be a reliable and well-constructed tool in my milling setup. Its reasonable structural design and quality components make it suitable for a wide range of milling machines and special machinery that require simple split cutting. Whether you’re doing precise gear cutting or angled milling tasks, this set equips you with the flexibility and accuracy needed to get the job done efficiently.

Here’s a quick overview of the key features and how they benefit users like me

Feature	Description	Benefit to User
Semi-Universal Dividing Head	Simple Index Center for direct and indirect dividing	Enables precise gear, face, and flute cutting without extra accessories
Quick-Indexing 24 Holes	Allows direct indexing of common divisions like 2, 3, 4, 6, 8, 12, 24	Makes repetitive dividing tasks faster and easier
Three Index Plates	Supports indirect indexing from 2-50 and 51-380 (excluding primes)	Provides flexibility for a wide range of division requirements
Adjustable Headstock	Tilts from 10° below horizontal to 90° vertical	Allows machining at various angles for diverse project needs
Tailstock Included	Provides strong support for long workpieces	Improves workpiece stability and machining accuracy
3-Jaw Chuck Milling Set	Included for versatile gripping and holding of workpieces	Enhances versatility and ease of use in milling operations

If you’re serious about milling and need a reliable dividing head that combines flexibility, precision, and a comprehensive accessory set, the KAKA INDUSTRIAL BS-0 is definitely worth considering. For me, it has been a valuable addition that helped streamline my workflow and tackle more complex machining tasks with confidence. While it’s designed with some limitations in mind (like prime number divisions), its overall functionality and build quality make it a smart investment for anyone looking to upgrade their

Get It From Amazon Now: Check Price on Amazon & FREE Returns

3. VEVOR Rotary Table for Milling Machines, 4”/ 100 mm, Horizontal Vertical Model Precision Milling Rotary Table, with 3.1”/80 mm 3-Jaw Chuck M10 T-Bolts Nuts, for Milling Engineering Indexing Tools

When I first came across the VEVOR Rotary Table for Milling Machines, I was immediately impressed by its robust design and precision features tailored for milling enthusiasts and professionals alike. This 4-inch (100 mm) rotary table promises to significantly elevate milling capabilities, especially for those working on small milling machines. Its versatility in positioning, rotation, indexing, and clamping of both wood and metal workpieces makes it an indispensable tool for machining curved surfaces, elongated holes, and precision drilling. Knowing that it is widely used in automotive, mold-making, and general machinery industries further assures me of its reliability and effectiveness in mechanical processing tasks.

One feature that really stood out to me is the secure clamping system that comes with the 3-jaw chuck. The serrated jaws provide a firm grip, which is crucial when working with small or delicate workpieces where stability is paramount. The chuck diameter of 3.1 inches (80 mm) and the dual internal and external clamping ranges (2-25 mm externally and 25-70 mm internally) offer a great deal of flexibility. This means I can confidently hold a variety of components without worrying about slippage or misalignment, which in turn leads to more precise and consistent machining results.

Precision is key in milling, and this rotary table excels in that department. The handwheel operation, combined with crystal-clear scales on both the wheel and the table, makes setting up and executing precise rotations straightforward. With 100 divisions on the handwheel and a full 360-degree scale on the table, I can easily control the exact angle of rotation. The 136 worm gear ratio means that every single turn of the handwheel results in just a 10-degree rotation of the table, giving me fine control over even the smallest adjustments. This level of accuracy is exactly what’s needed for intricate milling tasks where every degree counts.

Another aspect I appreciate is the flexibility in installation. The ability to mount the rotary table both horizontally and vertically broadens its usability across different milling setups. Knowing that the chuck top height is 4.7 inches (±3 mm) when horizontal and 3.4 inches (±3 mm) when vertical means I can easily plan my workspace and ensure compatibility with my milling machine. The positioning slots on the bottom of the table provide a secure and straightforward attachment method, reducing setup time and improving stability during operation.

Durability is often a concern with milling accessories, but the VEVOR rotary table alleviates this worry effectively. Crafted from HT250 cast iron, it’s built to withstand wear, scratches, corrosion, and the rigors of heavy loads and rapid rotation. This material choice not only enhances longevity but also maintains high hardness on the surface, ensuring that the rotary table remains reliable over extended use. For anyone serious about milling, investing in a tool that can endure tough conditions without compromising performance is a smart move.

In summary, here’s a breakdown of the VEVOR Rotary Table’s key specifications and features that highlight its strengths

Get It From Amazon Now: Check Price on Amazon & FREE Returns

4. Dividing Head Set 6″ with 3-jaw Chuck, Semi Universal Milling Set with 6.3″/160mm Chuck+Tailstock+Dividing Plates, BS-1 Dividing Head for Milling Grinding Drilling Machine

When I first came across the Dividing Head Set 6″ with 3-jaw Chuck, I immediately recognized its potential to elevate precision milling, grinding, and drilling tasks. This semi-universal milling set, complete with a 6.3″/160mm chuck, tailstock, and dividing plates, is designed for versatility and accuracy, which are critical for anyone serious about machining. What stands out to me is how the product caters to both industrial and residential users, making it accessible whether you’re a hobbyist or a professional machinist.

The universal indexing head is a game changer. It allows the workpiece to be indexed around its own axis at equal or unequal intervals, which means I can easily achieve complex machining angles without constant repositioning. The ability to wrench the workpiece axis to horizontal, vertical, or tilted positions relative to the milling machine table adds immense flexibility. This adaptability means I’m not limited by the machine’s orientation, and I can tackle a broader range of projects with confidence.

Precision is paramount in machining, and the clear, laser-engraved scales on this indexing head provide exactly that. The 24 quick indexing holes support common division increments such as 2, 3, 4, 6, 8, 12, and 24 degrees. This makes it straightforward to set up precise angles without complicated calculations. The indexing accuracy of 0.04° assures me that every cut or grind will be consistent, reducing waste and improving the quality of finished parts. This precision is essential whether I’m producing prototype components or performing detailed restorations.

Another feature I find incredibly useful is the angle adjustability of the headstock. The 6.3″/160mm 3-jaw chuck can be adjusted upward by 90 degrees from the horizontal position, and the center height of 5″/128 mm is well-suited for a variety of workpieces. Adding three jaws to the 6” chuck enhances gripping capability, which means I can securely hold irregularly shaped objects without fearing slippage. This flexibility lets me approach more challenging tasks with ease.

Mounting options are crucial for integrating the dividing head into my existing setup. This set supports both horizontal and vertical mounting, with a chuck height of 9“/220mm (±3mm) horizontally and 12”/310mm (±3mm) vertically. As long as my milling machine’s tool height exceeds these values, I can be confident that this dividing head will fit seamlessly. This makes it an ideal addition whether I’m working in a compact home workshop or a larger industrial setting.

Durability and build quality cannot be overlooked, and here the Dividing Head Set truly impresses. Constructed from FC30 cast iron, it promises long life and rugged performance. The rigid frame minimizes backlash and ensures smooth rotation, which is critical for maintaining accuracy over extended use. The 140 reduction ratio offers fine control over rotation, allowing me to make delicate adjustments without overshooting. This thoughtful engineering means the set will serve me reliably for years to come.

To summarize the key attributes and how they benefit users like me, I’ve compiled the following overview

Feature	Specification	Benefit
Table Diameter	4 inches / 100 mm	Ideal size for small milling machines, offering versatility.
Chuck Diameter	3.1 inches / 80 mm	Securely holds small workpieces with serrated jaws for firm grip.
External Clamping Range	0.08” – 0.98” / 2 – 25 mm	Accommodates various workpiece sizes for external clamping.
Internal Clamping Range	0.98” – 2.76” / 25 – 70 mm	Enables secure internal clamping for hollow or ring-shaped parts.
Handwheel Scale	100 divisions	Allows precise incremental control during rotation.
Table Scale	360 degrees	Full rotation scale for accurate angular positioning.
Gear Ratio	136	Enables fine control with 10-degree rotation per handwheel turn.

Feature	Benefit
Universal Indexing Head	Enables precise angular indexing and workpiece positioning for versatile machining tasks
Laser Engraved Scales with 24 Quick Indexing Holes	Ensures clear, precise angle measurements and simplifies setup for common divisions
Angle Adjustable 3-Jaw Chuck (6.3″/160mm)	Provides strong grip and flexibility to machine various shapes at multiple angles
Horizontal and Vertical Mounting	Offers compatibility with diverse milling machines and setups
Rugged FC30 Cast Iron Construction	Delivers durability, high precision, low backlash, and smooth operation over time
Reduction Ratio 140	Allows for fine, controlled rotation adjustments for accurate machining

Overall, I believe this Dividing Head Set is an excellent investment for anyone looking to improve their milling, grinding, or drilling capabilities. Its precision, versatility, and durable construction make it suitable for a wide range of projects and skill levels. While it’s a serious piece of equipment, the thoughtful design and clear features make it

Get It From Amazon Now: Check Price on Amazon & FREE Returns

How a Dividing Head for Milling Machine Helps Me

When I first started milling, I quickly realized that creating precise, evenly spaced features on a workpiece was a real challenge. That’s when I discovered the dividing head for my milling machine, and it completely changed the way I work. The dividing head allows me to rotate the workpiece at exact angles, making it so much easier to cut gears, slots, or any repetitive patterns with great accuracy. This precision saves me a lot of time and frustration compared to trying to measure and reposition the part manually.

Another reason the dividing head is invaluable to me is the versatility it adds to my milling projects. Whether I’m working on simple indexing or complex angular cuts, the dividing head lets me set up quickly and confidently. It also improves the quality of my finished parts, which is crucial when I’m working on custom or prototype pieces. Overall, using a dividing head has made my milling work more efficient, accurate, and enjoyable.

Buying Guide for Dividing Head for Milling Machine

Understanding What a Dividing Head Is

When I first started milling, I realized how essential a dividing head is for precise machining tasks. A dividing head allows me to rotate the workpiece at precise angles, enabling accurate cutting of gears, slots, and other complex patterns. Knowing its purpose helped me focus on features that matter for my projects.

Types of Dividing Heads

I found there are mainly two types: the plain dividing head and the universal dividing head. The plain type is simpler, mainly for horizontal milling, while the universal dividing head offers more flexibility with tilting and indexing capabilities. Choosing between these depends on the complexity of work I plan to do.

Material and Build Quality

The durability of a dividing head is crucial for consistent performance. I always look for one made of hardened steel or cast iron, which provides stability and long-lasting precision. A well-built unit minimizes vibrations and wear during operation.

Indexing Options and Accuracy

Precision is everything in milling. I check the indexing plates and worm gear ratios to ensure the dividing head can achieve the angle divisions I need. Some models offer quick indexing, while others provide fine adjustments. The more precise the indexing, the better the quality of my finished work.

Size and Capacity

The size of the dividing head should match the size of my milling machine and the workpieces I handle. I consider the maximum workpiece diameter and weight the dividing head can support to avoid limitations during projects.

Ease of Use and Setup

A dividing head that’s easy to mount and set up saves me time. Features like clear markings, smooth rotation, and simple locking mechanisms improve my workflow significantly. I also prefer models with adjustable settings that don’t require complicated tools.

Compatibility with Milling Machines

Not every dividing head fits all milling machines. I ensure the spindle size and mounting method are compatible with my machine. This prevents any issues during installation and ensures stable operation.

Additional Features to Consider

Some dividing heads come with extra features like tailstocks for better support, swivel bases for angled work, or adaptable accessories. I evaluate whether these extras are necessary for my specific milling tasks.

Budget and Value

While I don’t always go for the cheapest option, I balance cost with quality and features. Investing in a reliable dividing head pays off in precision and durability, which are vital for my milling projects.

Final Thoughts

Choosing the right dividing head involves understanding my machining needs, ensuring compatibility, and prioritizing precision. Taking time to evaluate these factors helped me find a dividing head that enhances my milling capabilities and produces excellent results every time.
